Data sheet

Weight	1.7 Kg
Dimensions	220 x 115 x 135 mm.
Operation	Air compressed
Speed	From 0 to 22.000 giri/min
Grinding discs	Thickness from 0.2-3 mm.
Outer diameter	50 mm.
Internal diameter	10 mm.

More info

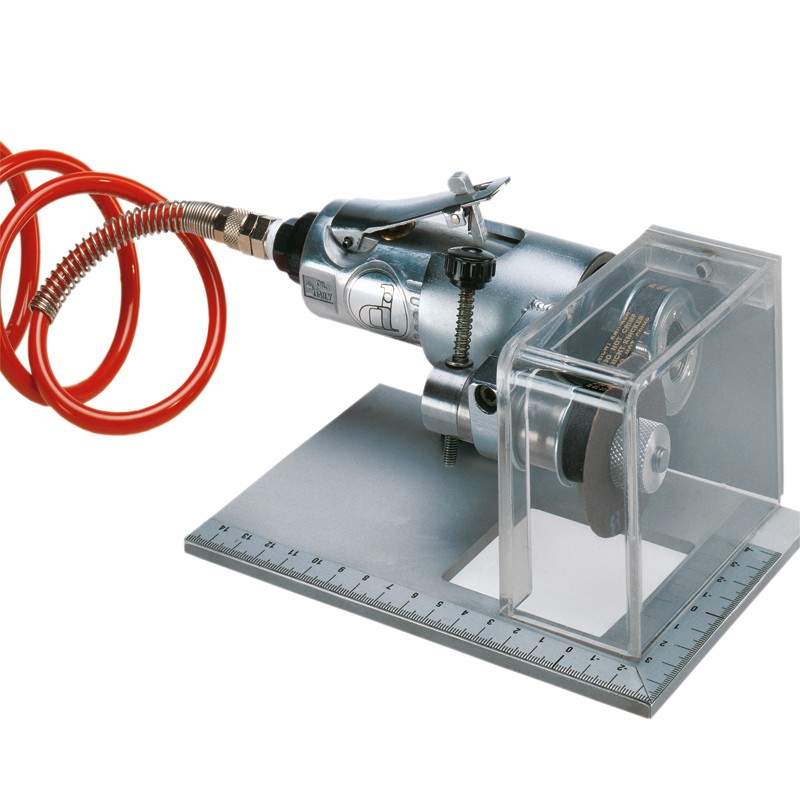

Very powerful steel rule nick grinder, using discs of 0.3-2 mm thickness and capable of nicking rules of all widths. Because of the danger of using cable-powered equipment on cutting rules we have designed our nick grinder SR/30 to run on compressed air, thereby ensuring the safaty of the operator.
A trasparent guard provides further protection for the operator.

MACHINE PARTS

Replacement description:	Code
pneumatic engine	2240
complete spindle	5753
drive pulley	2204
spindle pulley	2203
drive belt	5755
safaty protection	2209
regulation screw	2214
base plate	2208
locking nut	2202
